Solis ESS 51.2V 200Ah 10Kwh Wall-Mounted Lithium Battery
Solis ESS 51.2V 200Ah 10Kwh Wall-Mounted Lithium Battery
Home Power Wall Mounted Battery Lifepo4 Solar Lithium Battery 51.2V 200Ah 10Kwh
| Model Number: | SEW48200 |
| Capacity： | 10240WH |
| Battery Rated Voltage: | 51.2V |
| Dimensions（mm）: | 950*580*250 |
| Weight（kg）: | 115 |
Features of Sunway Solar Wall-Mounted Lithium Ion Battery
1> All-time monitor 2> Safety for Home 3> Long Lifespan 10 Years+
4> Flexible capacity 5> Easy Installation 6> Certifications available
4> Flexible capacity 5> Easy Installation 6> Certifications available
Nomal | ||
Model | SEW48100 | SEW48200 |
Battery Type | LiFePO4 (LFP) | |
Nominal Voltage (V) | 51.2V | |
Nominal Capacity (WH) | 5120WH | 10240WH |
Usable Capacity (WH) | 4096WH/80%DOD | 8192WH/80%DOD |
Design Life | 10+ Years (25℃/77℉) | |
Physical | ||
Dimension(mm) | 610*450*200 | 950*580*250 |
Weight(kg) | 59 | 115 |
Electrical | ||
Cycle Life | >6000, 25℃ | |
Discharge Voltage(V) | 40-58.4 | |
Charge Voltage(V) | 56-58.4 | |
Charge/Discharge Current (A) | 50A(Recomemended) | |
100A(Max) | ||
Internal Resistance | ≤30mΩ | |
BMS | ||
Power Consumption | <2W(Work)<100mW(Sleep) | |
Monitoring Parameters | System voltage, current, cell voltage, cell temperature, module temperature | |
SOC | Intelligent algorithm | |
Communication | CAN/RS-485/RS-232 | |
Warranty | ||
Product Warranty | 5 Years | |
Performance Warranty | 10 Years | |

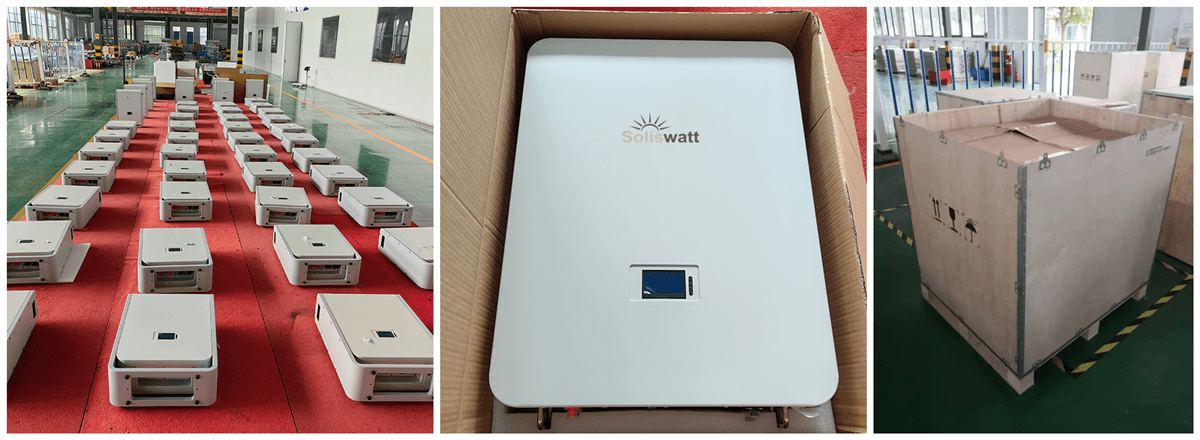

To Pack Wall-Mounted Lithium Ion Battery well. Generally, as follow:
1) Inner box - Carton - Pallet- Container
2) Packaging also can be made by customers requirements
2) Packaging also can be made by customers requirements
