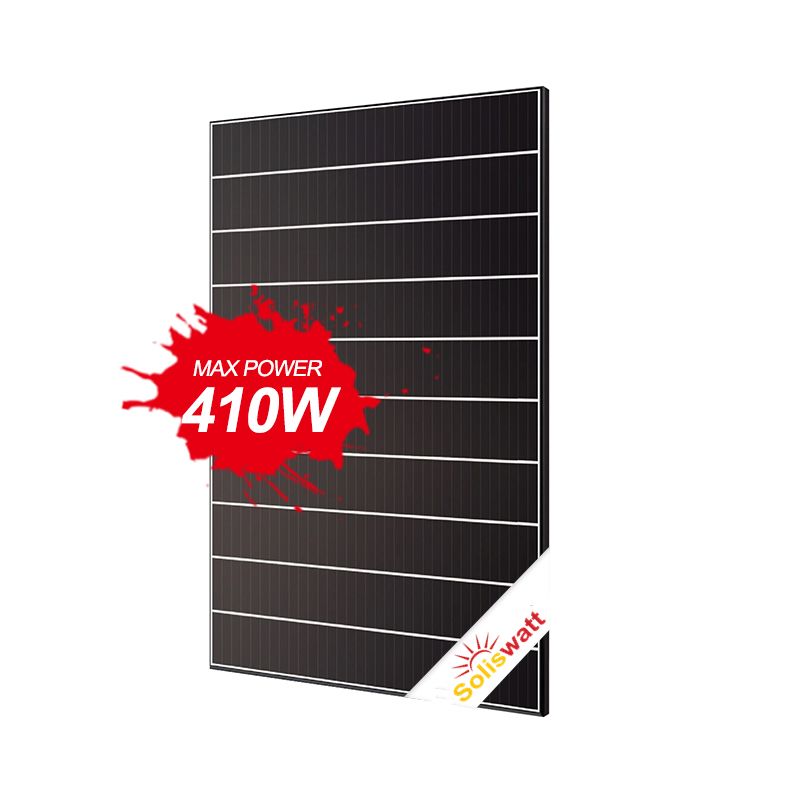

Solis 380W 400W 410W 450W Monocrystalline Shingled Solar Panels
Solis 380W 400W 410W 450W Monocrystalline Shingled Solar Panels
Shingled Solar Panel： Roofing Sheet Full Black Shingled 385w 390w 405w 410w Solar Panel Solar Set
| Model Number: | SP5-120HPS-410M |
| Power Range： | 385W-410W |
| Dimensions: | 1719*1140*35mm |
| Weight: | 22kg |
| Certificate: | CE/TUV |
Product Introduction
What are shingled solar modules?
The shingled module increases the effective power generation area by more than 2% compared with conventional modules, and the number of cells that can be packaged is increased to 66 pieces compared to the 60-piece version.
Replacing the soldering strip with conductive adhesive avoids the shielding area of the soldering strip to reach 4%.
Such shingle technology has also become one of the current mainstream packaging technologies for high-efficiency modules.
Electrical Characteristics at Standard Test Conditions(STC) | ||||||
Module type:SW410PM5-60SB | 385 | 390 | 395 | 400 | 405 | 410 |
Maximum power-Pm(W) | 385 | 390 | 395 | 400 | 405 | 410 |
Open circuit voltage-Voc(V) | 46.2 | 46.3 | 46.3 | 46.4 | 46.5 | 46.6 |
Short circuit current-Isc(A) | 10.82 | 10.87 | 10.92 | 10.97 | 11.02 | 11.07 |
Maximum power voltage-Vm(V) | 38.4 | 38.5 | 38.5 | 38.6 | 38.7 | 38.8 |
Maximum power current-Im(A) | 10.03 | 10.13 | 10.26 | 10.36 | 10.47 | 10.57 |
Module efficiency(%) | 19.6 | 19.9 | 20.2 | 20.4 | 20.7 | 20.9 |
Electrical Characteristics at NMOT | ||||||
Maximum power-Pm(W) | 290 | 294 | 297 | 301 | 305 | 309 |
Open circuit voltage-Voc(V) | 44.0 | 44.1 | 44.1 | 44.2 | 44.3 | 44.4 |
Short circuit current Isc(A) | 8.37 | 8.77 | 8.81 | 8.85 | 8.89 | 8.93 |
Maximum power voltage-Vm(V) | 36.6 | 36.7 | 36.7 | 36.8 | 36.9 | 37.0 |
Maximum power current-Im(A) | 7.92 | 8.00 | 8.10 | 8.18 | 8.27 | 8.35 |
*STC:Irradiation 1000W/㎡;AM1.5;ambient temperature 25℃ according to EN 60904-3; *NMOT:irradiation 800W/㎡;wind speed 1m/s;ambient temperature 20℃； *Tolerance of Pm:0~+5W;Measuring uncertainty of power: ±3%.Performance deviation of Voc(V),Isc(A),Vm(V) and Im(A):±3% | ||||||
Compared with the normal module technology, the interconnected material of shingled module is different from that of normal module, whose technology is simpler and more reliable, avoiding the defects such as deviation of ribbon and cold soldering.
Shingled Solar Panel Details
 |  |
PERC mono solar cells1.Shingled components of the same area can be packed into more cells 2.Reduce power loss and hot spots caused by shading | Glass1.Ture clear low iron glass 2.Translucency of normal luminance is increased 2% 3.Module efficiency is increased 2% |
 |  |
Frame1.Silvery and black 2. Thickness 30/35/40/45/50mm | Humanized design1.Prevent the aluminum frame from scratching the hand 2.Using the rain to clean dirt remaining on the solar module |
 |  |
Junction box1.Quality diode ensures module running safety 2. IP68 protection level 3. Long service life | Back sheet1.Low moisture permeability against snail trail defect 2.Excellent electric insulation for high system voltage up to 1500v 3.Outstanding weatherproof performance |
