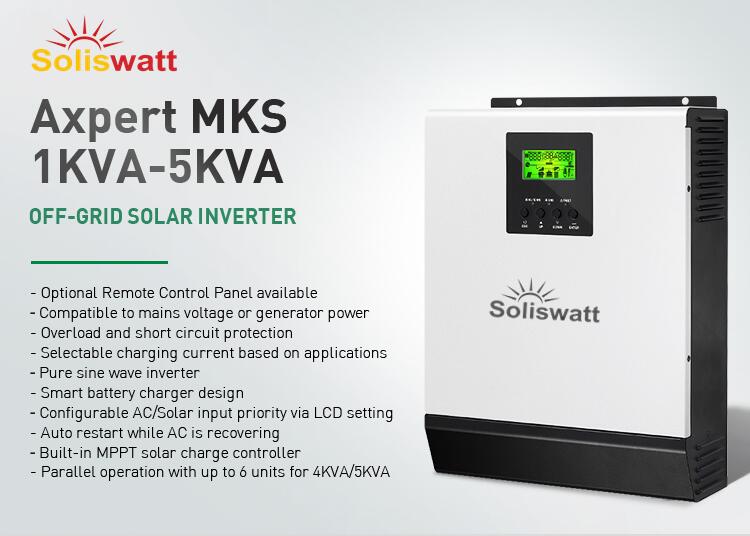

Soliswatt 5500w 220V Single Phase Off Grid Solar Inverter

Soliswatt 5500w 220V Single Phase Off Grid Solar Inverter

Category Off Grid Solar Inverter

Soliswatt 3.5 kW 5kW MPPT solar inverters 3000W 5000W solar power inverter 230 Volt inverter off grid for solar system

Model Number:	Axpert MKS 5KP
Output power：	5kW
Output Voltage:	230V
Size:	448295129mm
Weight:	12.5KG

Technical specifications

Axpert MKS	MKS 4K	MKS 5K	MKS II 5K	MKS 5KP
Rated Power	4000VA/4000W	5000VA/5000W	5000VA/5000W	5000VA/4000W
Parallel Capability	Yes, 9 units	Yes, 9 units	Yes, 9 units	Yes, 9 units
INPUT
Voltage	230 VAC	230 VAC	230 VAC	230 VAC
Selectable Voltage Range	170-280 VAC (For Personal Computers) ; 90-280 VAC (For Home Appliances)
Frequency Range	50 Hz/60 Hz (Auto sensing)
OUTPUT
AC Voltage Regulation (Batt. Mode)	230VAC ± 5%	230VAC ± 5%	230VAC ± 5%	230VAC ± 5%
Surge Power	8000VA	10000VA	10000VA	10000VA
Efficiency (Peak)	93%	93%	90%	90%
Transfer Time	10 ms (For Personal Computers) ; 20 ms (For Home Appliances)
Waveform	Pure sine wave	Pure sine wave	Pure sine wave	Pure sine wave
BATTERY
Battery Voltage	48VDC	48VDC	48VDC	24 VDC
Floating Charge Voltage	54 VDC	54 VDC Max: 58VDC (optional 64VDC)	54 VDC	Default: 24 VDC, Max: 30 VDC
Overcharge Protection	60 VDC	60 VDC (optional 66VDC)	63 VDC	30 VDC
SOLAR CHARGER & AC CHARGER
Maximum PV Array Power	4000W	4000W	4500W	2000W
MPPT Range @Operating Voltage	60 VDC~115 VDC	60 VDC~115 VDC	120 VDC~430 VDC	30 VDC~115 VDC
Maximum PV Array Open Circuit Voltage	145 VDC	145 VDC	450 VDC	145 VDC
Maximum Solar Charge Current	80 A	80 A	80 A	80 A
Maximum AC Charge Current	60 A	60 A	80 A	60 A
Maximum Charge Current	140 A	140 A	80 A	140 A
Maximum Efficiency	98%	98%	98%	98%
Standby Power Consumption	2 W	2 W	2 W	2 W
PHYSICAL
Dimension,DxWxH (mm)	120 x 295 x 468	120 x 295 x 468	120 x 295 x 468	180 x 310 x 475
Net Weight (kgs)	12.5	13.5	11	12.5
ENVIRONMENT
Humidity	5% to 95% Relative Humidity (Non-condensing)
Operating Temperature	0°C - 55°C	0°C - 55°C	0°C - 55°C	0°C - 55°C
Storage Temperature	-15°C - 60°C	-15°C - 60°C	-15°C - 60°C	-15°C - 60°C

* Typical transfer time for parallel operation is 30ms.Product specifications are subject to change without further notice.
