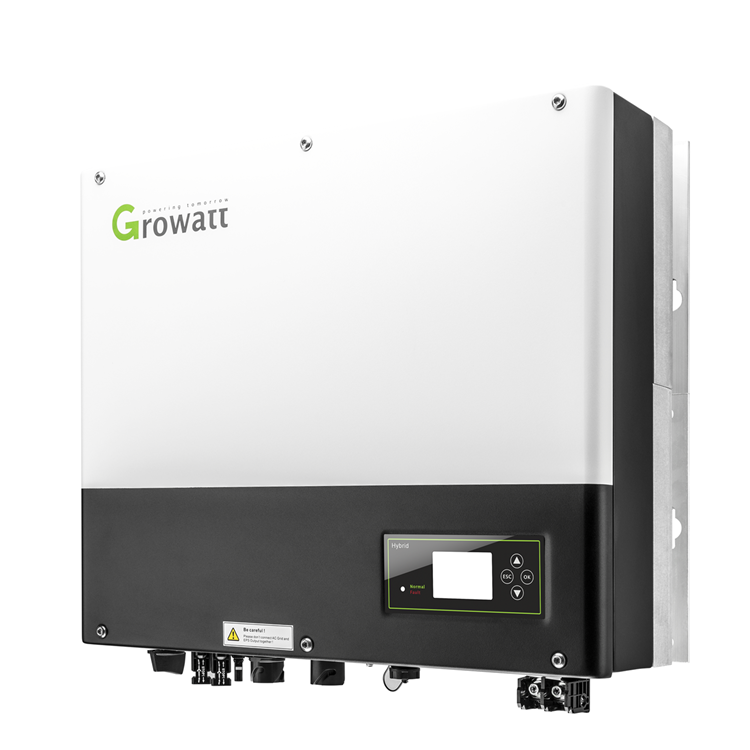

Soliswatt Growatt 4000w 10000w 400V Three Phase Hybrid Solar Inverter
Soliswatt Growatt 4000w 10000w 400V Three Phase Hybrid Solar Inverter
Gorwatt 4000w 10000w 400V Hybrid Solar Inverter for Solar Power System
| Model Number: | SPH4000~10000 |
| Output power： | 4-10kw |
| Output Voltage: | 400V |
| Size: | 505*453*198mm |
| Weight: | 28KG |
Datasheet | SPH4000 TL3 BH | SPH5000 TL3 BH | SPH6000 TL3 BH | SPH7000 TL3 BH | SPH80000 TL3 BH | SPH100000TL3 BH |
Input data(PV) | ||||||
Max. recommended PV power (for module STC) | 5200W | 6500W | 7800W | 9100W | 10400W | 13000W |
Max. DC Voltage | 1000V | |||||
Start Voltage | 160V | |||||
MPP Voltage Range | 160V-1000V/600V | |||||
No. of MPP trackers | 2 | |||||
No. of PV String per MPP tracker | 1 | |||||
Max. Input Current per MPP tracker | 12A | |||||
Max. Short-circuit Current per MPP tracker | 15A | |||||
Output data(AC) | ||||||
AC Nominal Power | 4000W | 5000W | 6000W | 7000W | 8000W | 10000W |
Max. AC apparent Power | 4000VA | 5000VA | 6000VA | 7000VA | 8000VA | 10000VA |
Nominal AC Voltage | 230V/400V (310~476V) | |||||
AC Grid Frequency | 50Hz/60Hz (45Hz-55Hz/55Hz-65Hz) | |||||
Max. Output Current | 6.1A | 7.6A | 9.1A | 10.6A | 12.1A | 15.2A |
Adjustable Power Factor | 0.8leading…0.8lagging | |||||
THDi | <3% | |||||
AC Grid Connection Type | 3W+N+PE | |||||
Battery data (DC) | ||||||
Battery voltage range | 100~550V | |||||
Max charging and discharging current | 25A | |||||
Continuous charging and discharging power | 4000W | 5000W | 6000W | 7000W | 8000W | 10000W |
Type of battery | Lithium battery | |||||
