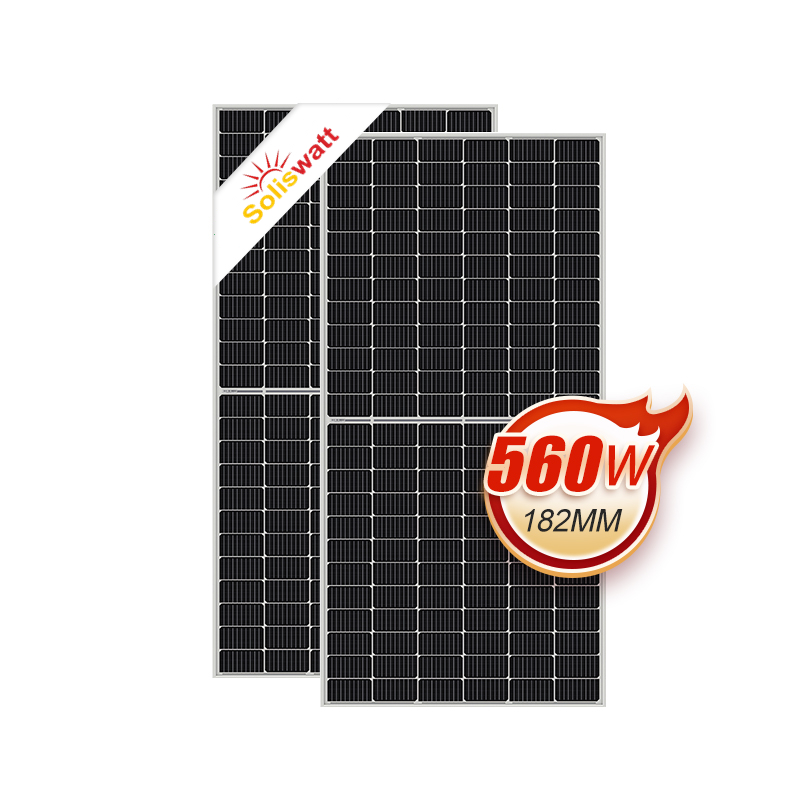

Solis 144cells 182mm 535w 560w Monocrystalline Half Cell Solar Panel
Solis 144cells 182mm 535w 560w Monocrystalline Half Cell Solar Panel
Hlaf Cell Solar Panel:
High power 500watt solar panel 530w 540w 550w mono photovoltaic module pv solar panel 540w
| Model Number: | SP5-144HPH-560M |
| Power Range： | 535W-560W |
| Dimensions: | 2279*1134*35mm |
| Weight: | 29kg |
| Certificate: | CE/TUV |
Product Introduction
high watt solar panel 530w 540w 550w mono photovoltaic module pv solar panel 540w
MECHNICAL SPECIFICATION | |
Module Size | 2279*1134*35mm |
Weight | 29kgs |
Cell Type | Half Cut Perc |
Junction Box | IP67/IP68, 3Diodes |
Cable | 300m 4mm2 cable or customized |
Connector | PV Connector |
ELECTRICAL CHARACTERISTICS(STC) | |||
Module | SP5-144HPH-550M~ SP5-144HPH-560M | ||
Maximum Power (Pmax) | 550W | 555W | 560W |
Maximum Power Voltage (Vmp) | 41.60V | 41.80V | 42.00V |
Maximum Power Current (Imp) | 13.23A | 13.29A | 13.35A |
Open-circuit Voltage (Voc) | 49.80V | 50.00V | 50.20V |
Short-circuit Current (Isc) | 13.99A | 14.05A | 14.11A |
Module Efficiency (%) | 21.20% | 21.39% | 21.58% |
Power Tolerance | 0~+5W | ||
Standard Test Environment | Irradiance 1000w/m2, Ambient temperature 25℃, Spectrum AM 1.5 | ||
Electrical Characteristics(STC) | |||
Module | SW535M-144 ~ SW545M-144 | ||
Maximum Power (Pmax) | 535W | 540W | 545W |
Maximum Power Voltage (Vmp) | 41.00V | 41.20V | 41.40V |
Maximum Power Current (Imp) | 13.05A | 13.11A | 13.17A |
Open-circuit Voltage (Voc) | 49.20V | 49.40V | 49.60V |
Short-circuit Current (Isc) | 13.81A | 13.87A | 13.93A |
Module Efficiency (%) | 20.62% | 20.81% | 21.01% |
Power Tolerance | 0~+5W | ||
Standard Test Environment | Irradiance 1000w/m2, Ambient temperature 25℃, Spectrum AM 1.5 | ||
 | ||
Junction Box | Serial No. | Grounding Hole |
 | ||
| Waterproof Labels Soliswatt/OEM | Juction Boxes | PV Connector |
