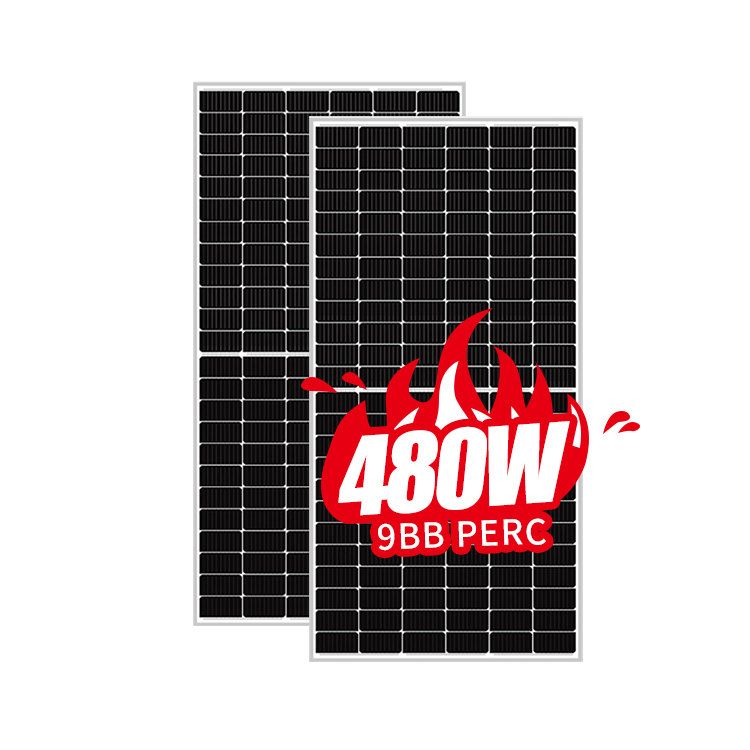

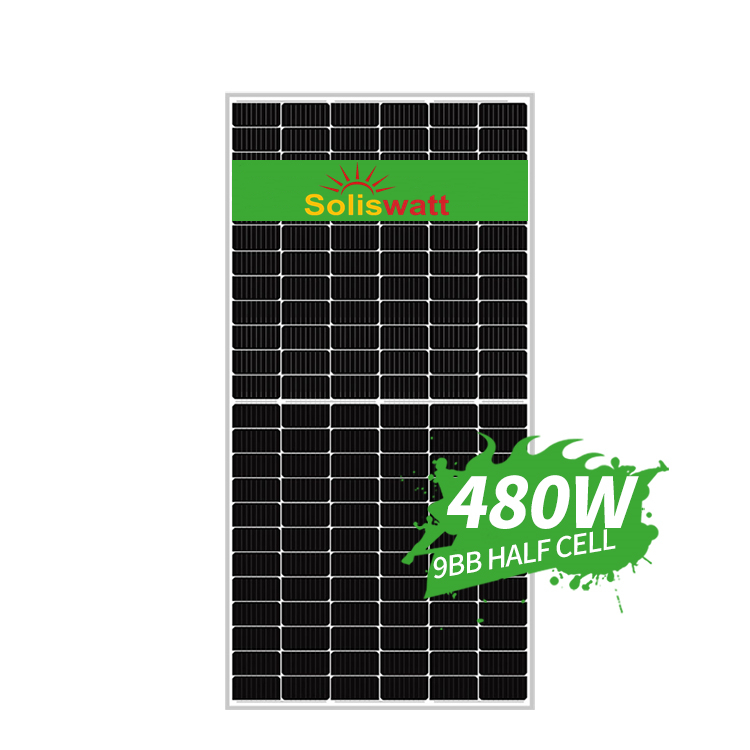

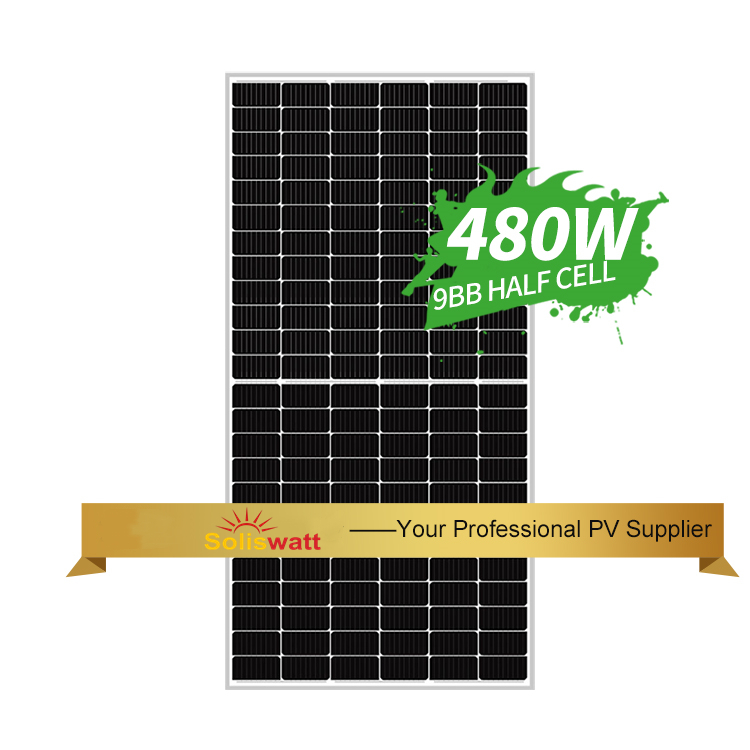

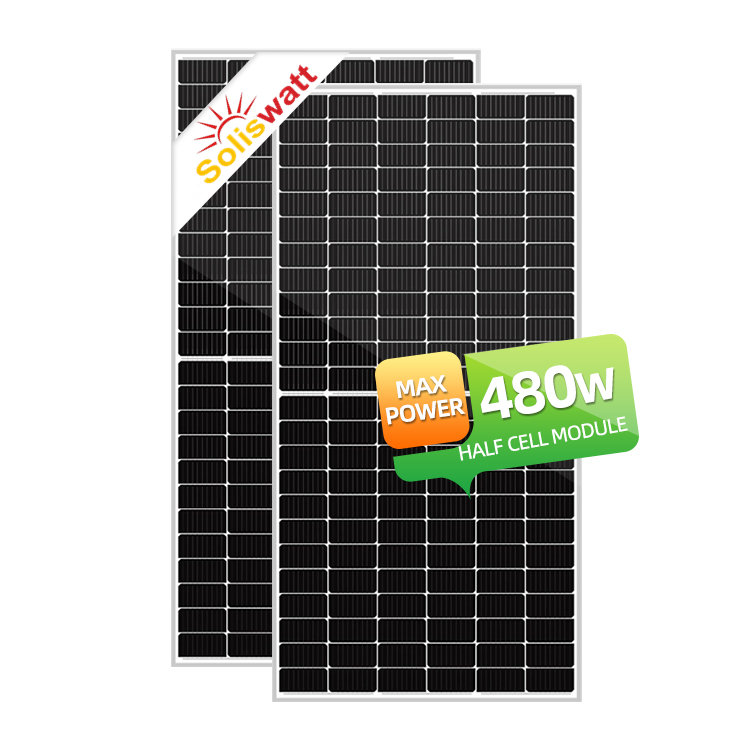

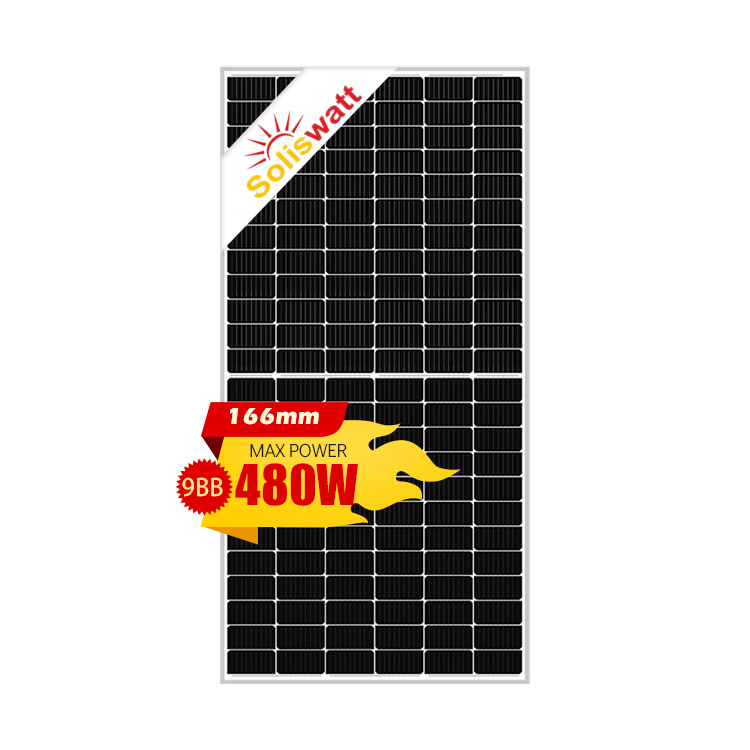

Solis 144cells 166mm 460w 480w Monocrystalline Half Cell Solar Panel
Solis 144cells 166mm 460w 480w Monocrystalline Half Cell Solar Panel
Half Cell Solar Panel:
Solis 36v 450W 480w low price solar panel monocrystalline for household
| Model Number: | SP5-144HPH-480M |
| Power Range： | 450W-500W |
| Dimensions: | 2094*1038*35mm |
| Weight: | 24.5kg |
| Certificate: | CE/TUV |

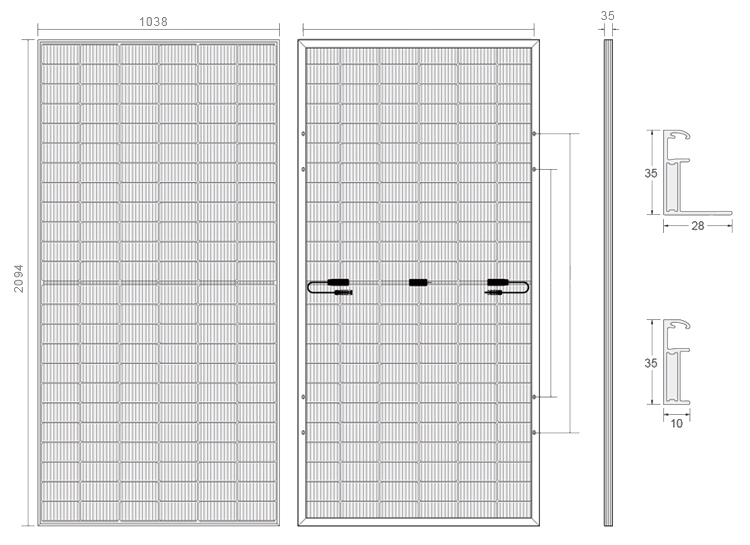

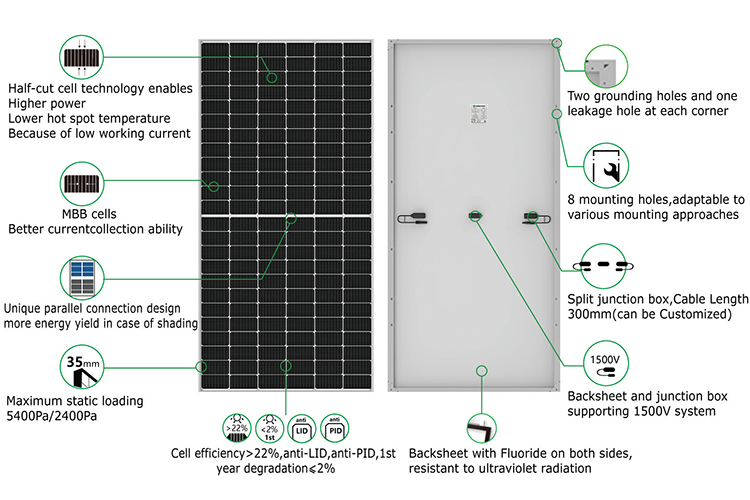

MECHNICAL SPECIFICATION | |
Module Size | 2094*1038*35mm |
Weight | 24.5kgs |
Cell Type | Half Cut Perc |
Junction Box | IP67/IP68, 3Diodes |
Cable | 300m 4mm2 cable or customized |
Connector | Mc4 Connector |
ELECTRICAL CHARACTERISTICS(STC) | |||
Module | SP5-144HPH-470M ~ SP5-144HPH-480M | ||
Maximum Power (Pmax) | 470W | 475W | 480W |
Maximum Power Voltage (Vmp) | 42.20V | 42.50V | 42.80V |
Maximum Power Current (Imp) | 11.22A | 11.28A | 11.34A |
Open-circuit Voltage (Voc) | 50.70V | 51.00V | 51.30V |
Short-circuit Current (Isc) | 11.66A | 11.72A | 11.78A |
Module Efficiency (%) | 21.50% | 21.70% | 21.90% |
Power Tolerance | 0~+5W | ||
Standard Test Environment | Irradiance 1000w/m2, Ambient temperature 25℃, Spectrum AM 1.5 | ||
Electrical Characteristics(STC) | ||||
Module | SW450M-144 ~ SW465M-144 | |||
Maximum Power (Pmax) | 450W | 455W | 460W | 465W |
Maximum Power Voltage (Vmp) | 41.00V | 41.30V | 41.60V | 41.90V |
Maximum Power Current (Imp) | 10.98A | 11.04A | 11.10A | 11.16A |
Open-circuit Voltage (Voc) | 49.50V | 49.80V | 50.10V | 50.40V |
Short-circuit Current (Isc) | 11.42A | 11.48A | 11.54A | 11.60A |
Module Efficiency (%) | 20.70% | 20.90% | 21.10% | 21.30% |
Power Tolerance | 0~+5W | |||
Standard Test Environment | Irradiance 1000w/m2, Ambient temperature 25℃, Spectrum AM 1.5 | |||

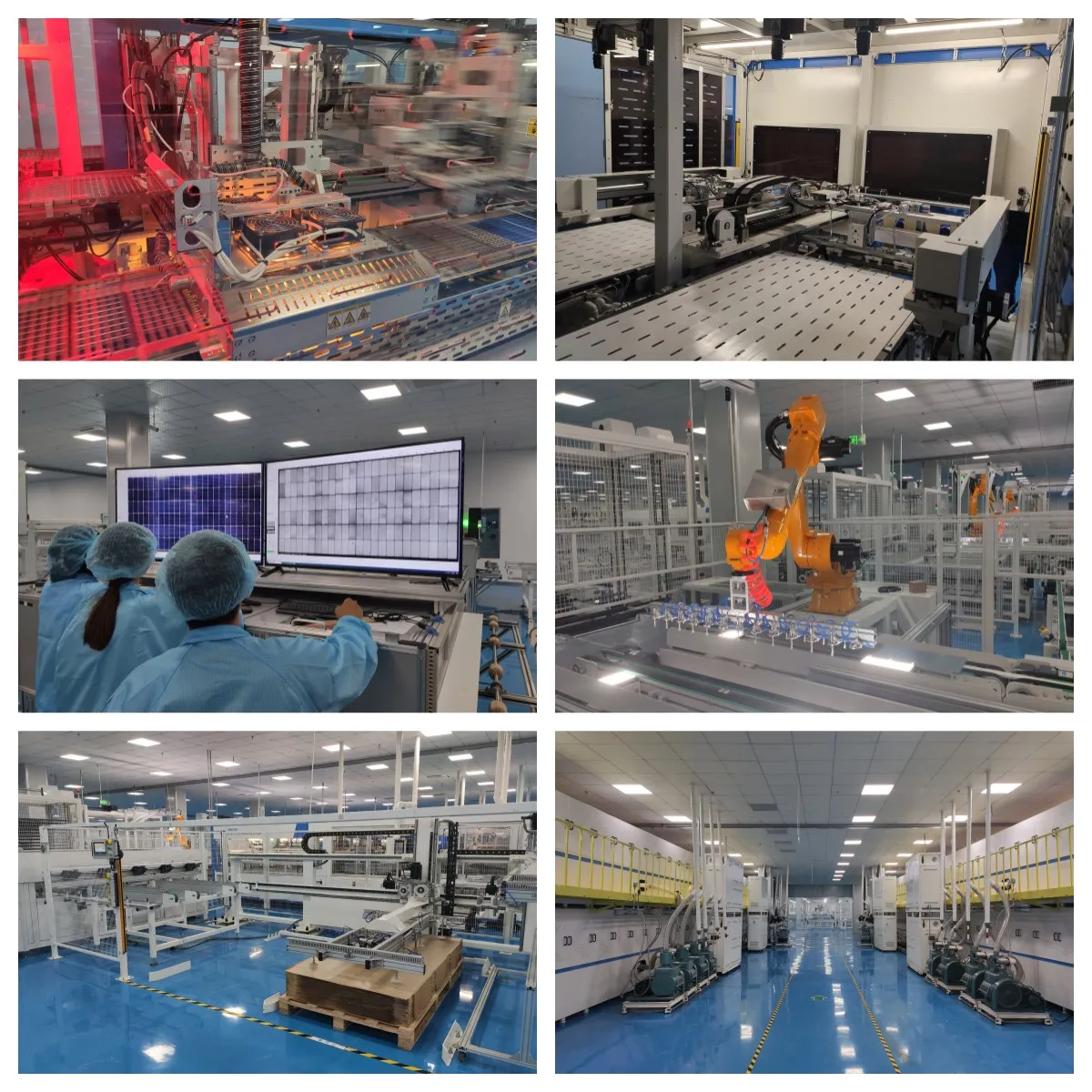

Solar Panel Factory
 | ||
Junction Box | Serial No. | Grounding Hole |
 | ||
| Waterproof Labels Soliswatt/OEM | Juction Boxes | PV Connector |

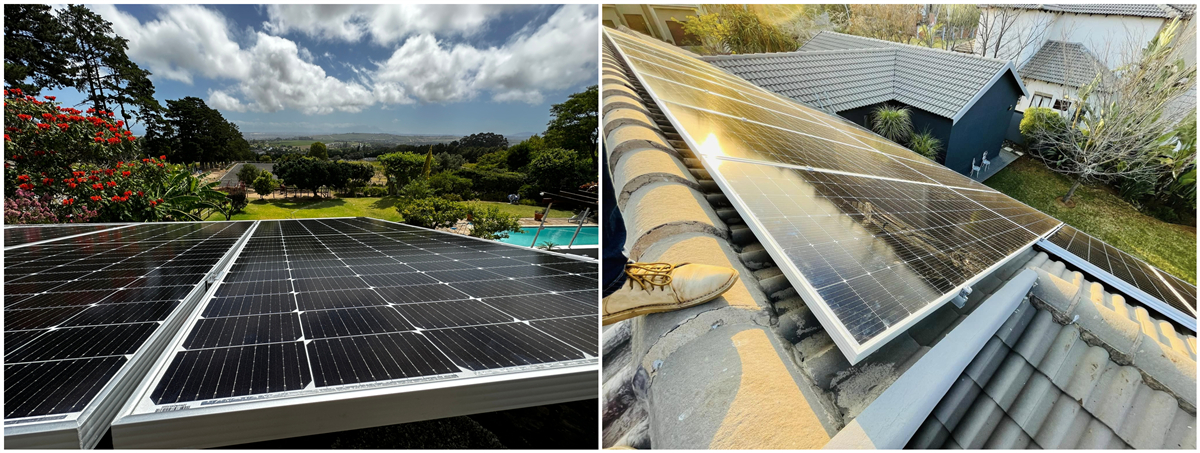

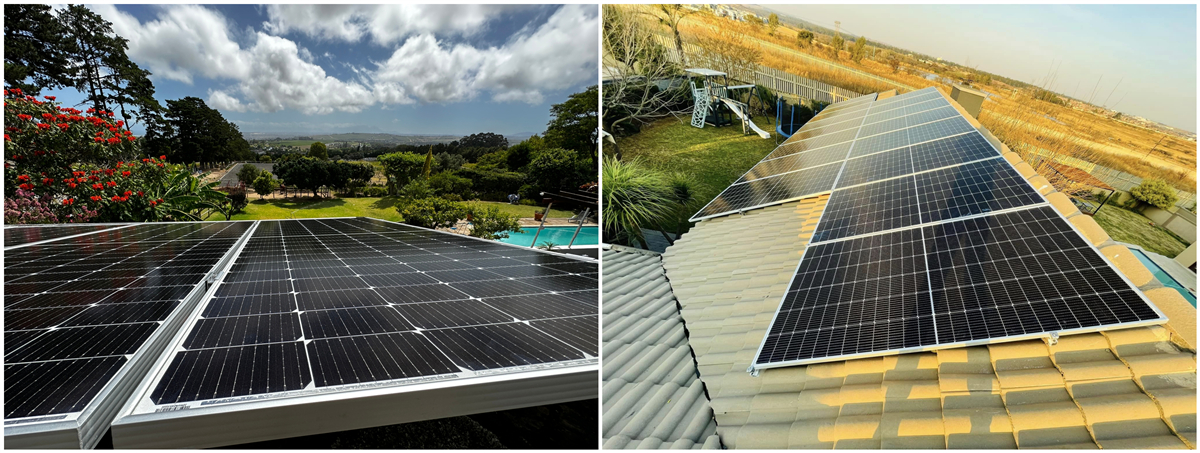

Project

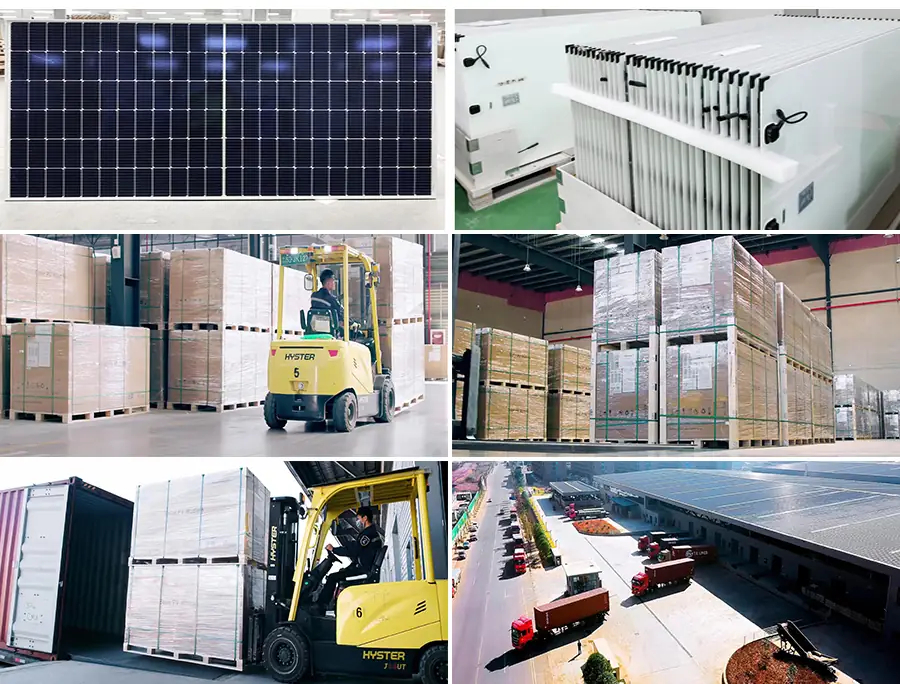

Packing & Delivery
PACKAGE CONFIGURATION | ||||
Container | 310W-340W | 360W-410W | 450W-480W | 500W-660W |
Pallet | 35pcs | 30pcs | 31pcs | 31pcs |
40GP | 924pcs | 840pcs | 726pcs | 620pcs |
