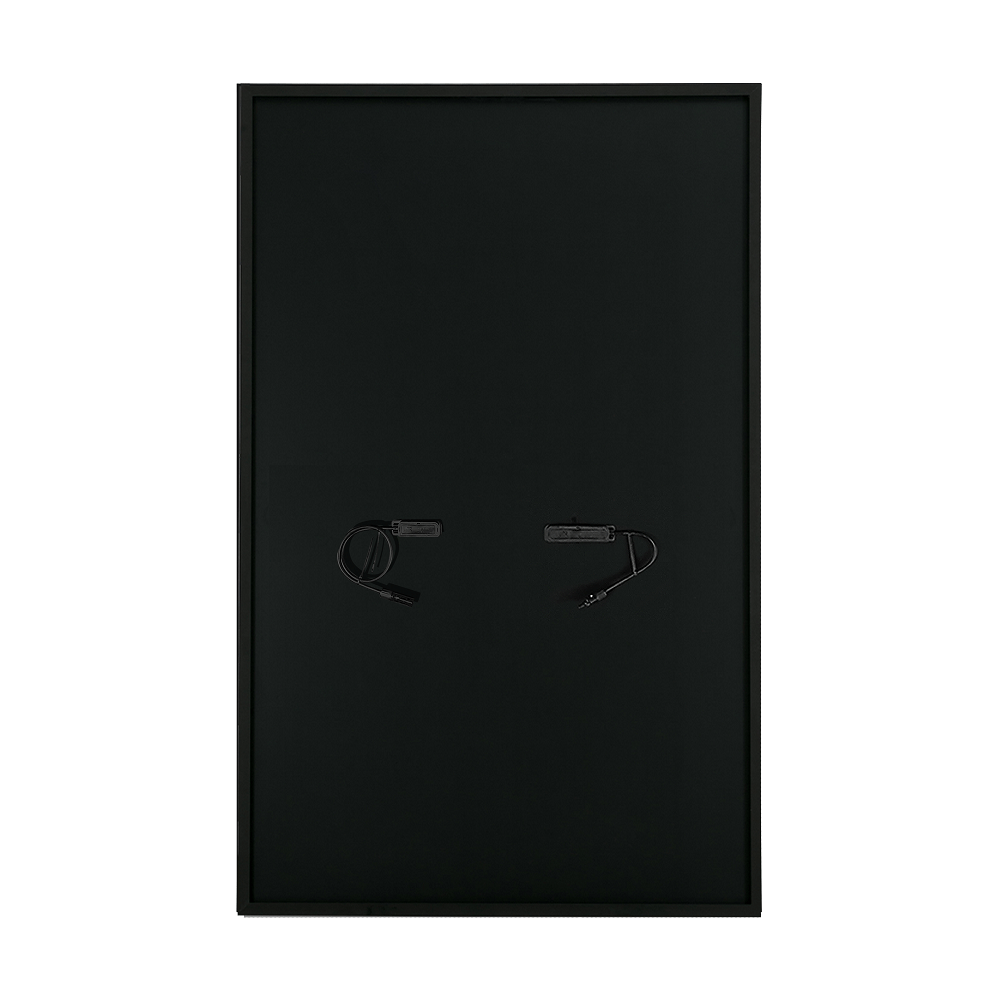

Solis 144cells 182mm 440w 460w Monocrystalline Full Black Solar Panel
Solis 144cells 182mm 440w 460w Monocrystalline Full Black Solar Panel
High Efficiency Black 440W 445W 450W 455W 460W Mono Solar Photovoltaic Mono Cells
| Model Number: | SP5-144HPB-460M-144 |
| Power Range： | 440W-460W |
| Dimensions: | 2094*1038*35mm |
| Weight: | 22.5kg |
| Certificate: | CE/TUV |
Product Introduction
Electrical Parameters | |||||
Module | SP5-144HPB-440M ~ SP5-144HPB-460M | ||||
Encapsulation | Class/Eva/Cell/Eva/Backsheet | ||||
Maximum Power Pmax (W) | 440 | 445 | 450 | 455 | 460 |
Maximum Power Voltage (Vmp/V) | 40.5 | 40.8 | 41 | 41.3 | 41.6 |
Maximum Power Current (Imp/A) | 10.86 | 10.92 | 10.98 | 11.04 | 11.1 |
Open Circuit Voltage (Voc/V) | 49 | 49.2 | 49.5 | 49.8 | 50.1 |
Short Circuit Current (Isc/A) | 11.3 | 11.36 | 11.42 | 11.48 | 11.54 |
Cell Efficiency(%) | 22.18 | 22.43 | 22.68 | 22.93 | 23.19 |
Module Efficiency (%) | 20.24 | 20.47 | 20.7 | 20.93 | 21.16 |
Power Tolerance (W) | 0 ~ +5W | ||||
Temperature Coefficient of Isc (αIsc) | 0.06%/℃ | ||||
Temperature Coefficient of Voc (βVoc) | 0.30%/℃ | ||||
Temperature Coefficient of Pmax (γPmp) | 0.38%/℃ | ||||
STC | Irradiance 1000W/㎡, Cell Temperature 25℃ , Air Mass 1.5 | ||||
 | ||
| Waterproof Labels Product by Waterproof Labels Soliswatt/OEM | Juction Boxes by TL, QC Solar Innovative Full-Glue-Filled IP68 Waterproofness | PV Connector by TL, QC SolarMC4 4mm Qualified cable |
